  • Model
  • PWV2-10-1
  • Series
  • WJ200
  • Horsepower
  • 1.000
  • Rating kW
  • 0.70
  • Capacity kVA
  • 2.00
  • Input Voltage
  • 200 - 240 +/- 10% (1P)
  • Input Phase
  • Single
  • Input Current
  • 11.5
  • Output Voltage
  • 200 - 240 +/- 10% (3P)
  • Output Current
  • 5.0000
  • Package Height
  • 13
  • Package Width
  • 11
  • Package Depth
  • 9
  • Package Weight
  • 8.0

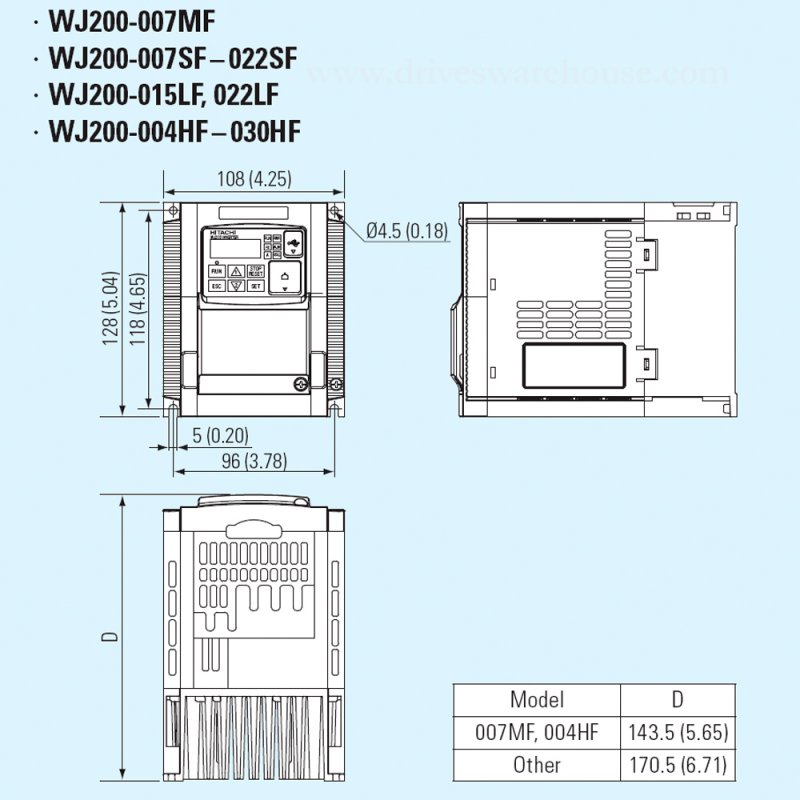

  • Product Height
  • 5.0000
  • Product Width
  • 4.3000
  • Product Depth
  • 6.7000
  • Description

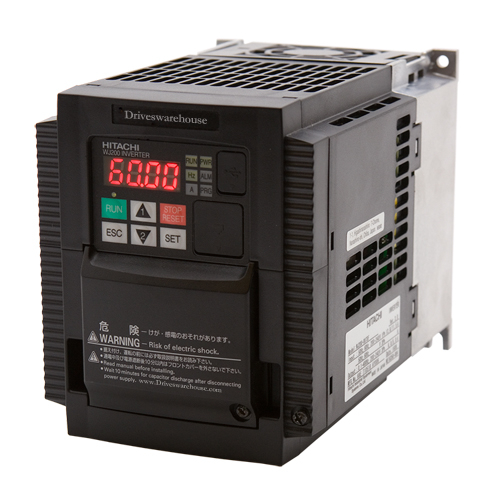

  • 1 HP, 5 Amp, 0.7 kW, WJ200-007SF, Constant Torque Sensorless Vector AC Drive, Input: 200 - 240VAC, Single Phase
  • Category
  • Drives
  • SubCategory
  • AC Drives
  • SubSubCategory
  • Sensorless Vector VFD
  • Enclosure
  • NEMA 1 (IP20)
  • Control Method
  • Line-to-line sine wave Pulse Width Modulation (PWM) Control
  • Input Frequency Range
  • 50 - 60
  • Output Frequency Range
  • 0.1 - 400 Hz
  • VF Characteristics
  • V/F variable V/F control (constant torque reduced torque) Sensorless vector control
  • Overload Current Rating
  • 150% 60 seconds
  • Accel Decel Time
  • 0.1 - 6000 sec. (linear/curve accel./decel.) Two stage accel./decel. setting available
  • Starting Torque
  • 200% or more
  • DC Braking
  • Operating frequency time and braking force variable.
  • Freq Setting Operator Panel
  • Up(1) and Down(2) keys/value setting keys.
  • Freq Setting Potentiometer
  • Analog Setting
  • Freq Setting External Signal
  • "0 ~ 10 VDC (input impedence 10k ohms), 4 ~ 20 mA (input impedence 250k ohms), Potentiometer: 1k to 2k ohms variable resistor, The frequency command is the maximum frequency at 9.8V for input voltage 0 - 10 VDC or at 19.6 mA for input current 4 ~ 20 mA. If this characteristic is not convenient contact Drives Warehouse."
  • FWD REV START STOP Operator
  • Run/Stop (Forward/Reverse run change by command)
  • FWD REV START STOP External Signal
  • Forward RUN/STOP Reverse RUN/STOP

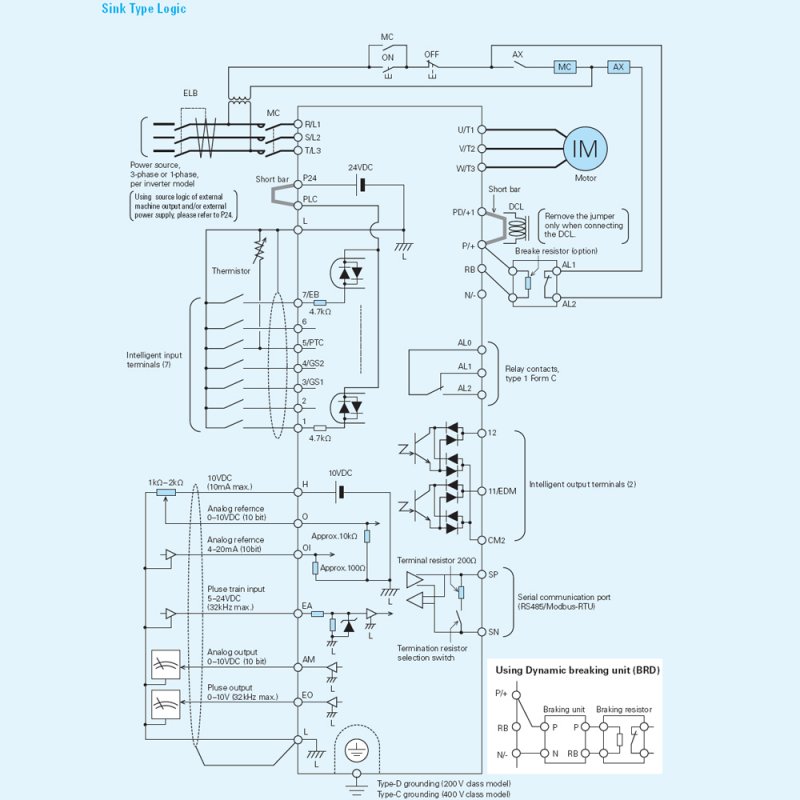

  • Intelligent Input Terminals
  • "FW (Forward run command), RV (reverse run command, CF1~CF4 (multi-stage speed setting), JG (jogging command), 2CH (2-stage acceleration/deceleration command), FRS (free run stop command), EXT (external trip), USP (USP function), SFT (soft lock)"
  • Manufacturer
  • Hitachi
